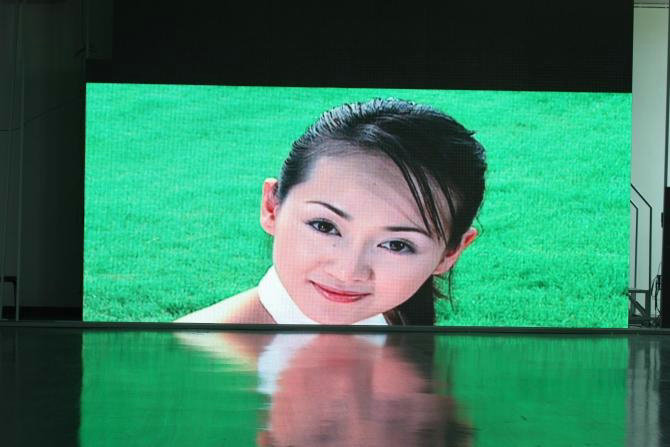

High Resolution Advertising P5 Led Video Indoor Display Multi Color
Led Display
Product Features
1. Support all types of video, graphics, animation, message, etc,
support PC online or offline control, also can remote control with
asynchronous system, or Wifi control, 3G control.
2. Outdoor standard cabinet applied with strong humidity resistance
ability as well as corrossion resistance.
3. With multi- functional card, the led display can turn on and
turn off the screen by timing or manually at any time.
4. Very light and easy for transportation. Easy to use and install.
5. Supports Internet, SD card, Wifi, HDMI input and 3G remote
input.
6. Works perfectly both online and offline.
FREQUENCY ASKED QUESTIONS
Q: How to get the price list?
A: Sorry that we don't have price list because each project has
difference requirements, and we quote according to your detailed
requirements.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check
our product’s quality.
Q: What is the delivery guarantee?
A: Guarantee time: 2 years. Within 2 years, if any part failed, we
send new parts or repair for free, You will undertake shipping cost
from your city to China and we undertake shipping cost from China
to your city. After 2 years, we only charge cost price for parts
and repairements, and you need to pay shipping cost go and back.
Q: What's the control system?
A: Control system could be Linsn, Nova-star, Xixun, Color
light...Usually client use Linsn for fixed installation led
screens, and Nova-star system for rental screens.
Q: Why is brightness important?
A: If you want images to be seen during the day, your display must
compete with the Sun. The Sun emits approximately 4,000 nits of
light (a nit is a measurement of light emitted from a device.) In
order for an LED display to display effectively during the day, a
minimum of 5,000 nits is required.
Product Parmeters
| INDOOR FIXED |
| Item | Value |
| Model No. | CDN-151 | CDN-161 | CDN-181 | CDN-191 | CDN-201 | CDN-251 | CDN-301 | CDN-401 | CDN-501 | CDN-601 | CDN-761 | CDN-101 |
| Pixel Pitch(mm) | 1.5625 | 1.667 | 1.875 | 1.923 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7.62 | 10 |
| Pixel Density(dots/sqm) | 409600 | 359856 | 284444 | 270422 | 250000 | 160000 | 111111 | 62500 | 40000 | 27777 | 17223 | 10000 |
| LED Type | SMD1010 | SMD2121 | SMD3528 |
| Viewing Angle(Deg.) | H:120 V:120 |
| Brightness(nits) | 800~1000 | 800~1200 |
| Refresh Rate(Hz) | 360~1920 |
| Module Size(mm) | 200*100 | 120*120 | 200*100 | 128*128 | 160*160 | 192*192 | 256*256 | 320*160 | 384*192 | 488*244 | 320*160 |
| Cabinet Size Recommended (mm) | 400*300 | 480*480 | 400*300 | 512*512 | 480*480 | 576*576 | 768*768 | 960*960 | 768*768 | 976*976 | 960*960 |
| Cabinet Material | Die-casting aluminum / Magnalium | Steel with powder painted |
| Cabinet Weight | ≤35KG/SQM | ≈45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 500/1250 | 600/1500 | 500/1250 | 320/800 | 310/780 | 270/680 | 280/700 | 200/500 | 125/310 | 100/260 | 120/300 |
| IP Grade | IP43 / IP31 |
| Operating Temp/Humidity (℃/%RH) | -20℃～45℃10～90%RH |
| Storage Temp/Humidity (℃/%RH) | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Normal Temp) |
Why choose us
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
