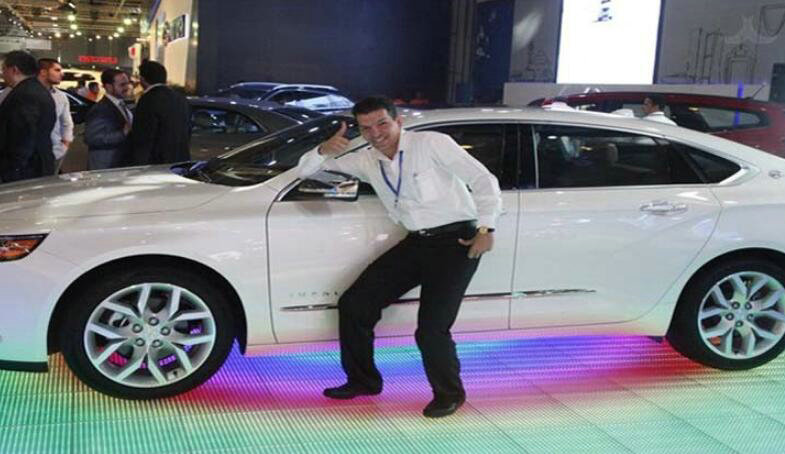

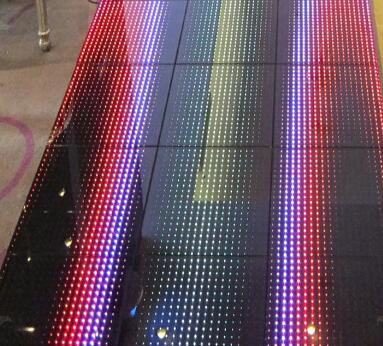

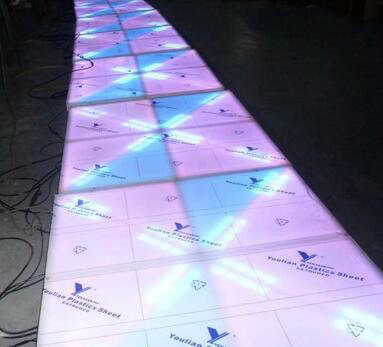

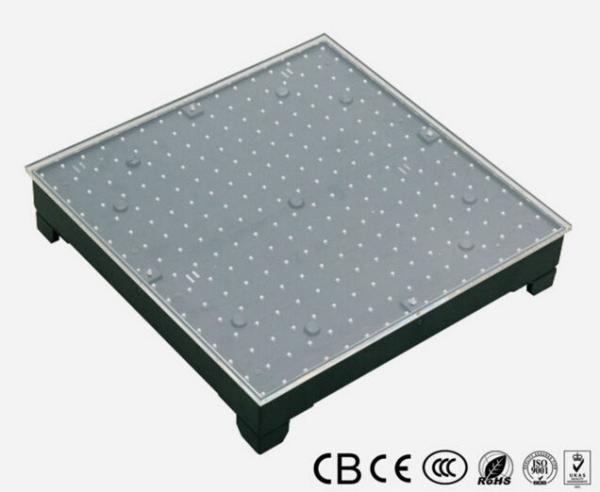

PH15.625MM Indoor SMD Dance Floor LED Screen/LED Board Display
Product features:
1. Dual back-up: both power supply and system dual back-up are
optional, reliable performance.
2. Modular design, any cabinet could removed and replace when it is
not working well.
3. Special heat-disspating channel design to ensure heat radiate
rapidly and effectively.
4. The led display can be assembled into concave and convex
screens.
5. Fine pixel pitch rental solution is available.
6. Detachable panel: Independent design of module, frame and
control box.
RFQ:
Q: Outdoor screen can't use surface mount LED?
A: We have outdoor SMD display now. We solve the problem of the
brightness and water proof. We use SMD3535 led chip, filling the
glue on the surface with IP65 cabinet.
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display
industry. We can offer better price than trading Company.
Q: When is the delivery time?
A: we will accomplish manufacturing within 10-30 days after
receiving deposit. If you need urgent, please kindly let us know,
in guaranteed of quality, we will try our best to produce faster.
Q: How could I buy the products I need if there is no price in the
website?
A: You can send your inquiry to us about the products you need,our
sales will reply you within 24 hours to help you make the order.
Q: What is LED?
A: LED is sanded for Light Emitting Diode, a kind of semiconductor
which is used to give and receive the electronic signal into
infrared rays or light, using the characteristics of compound
semiconductor. This is used for household appliances, remote
controller, electric bulletin board, various kinds of automation
appliances.
Q: What are Pixel Pitch, Pixel Density, LED QTY, and Pixel
Configuration?
A: Pixel Pitch is the distance between neighboring pixels.Pixel
Density is the quantity of pixels per square meter. LED QTY is the
quantity of LED lamps per square. Pixel Configuration is the
description of the consistence of a pixel, for instance, we use 1
red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the
pixel configuration is 1R1G1B.
Product specification:
| INDOOR RENTAL |
| Item | Value |
| Model NO. | CDR-301 | CDR-391 | CDR-401 | CDR-481 | CDR-501 | CDR-601 | CDR-621 | CDR-101 |
| Pixel Pitch | 3 | 3.91 | 4 | 4.81 | 5 | 6 | 6.25 | 10 |
| Pixel Density (dots/sqm) | 111111 | 65536 | 62500 | 43264 | 40000 | 27777 | 25600 | 10000 |
| LED Type | SMD2121 | SMD3528 |
| Viewing Angle | H:120 V:120 |
| Brightness (nits) | 800～1200 |
| Refresh Rate (Hz) | 1920～3000 |
| Module Size(mm) | 192*192 | 250*250 | 256*128 | 250*250 | 320*160 | 192*192 | 250*250 | 320*160 |
| Cabinet Size (mm) | 576*576 | 500*500/500*1000 | 512*512 | 500*500/500*1000 | 640*640 | 576*576 | 500*500/500*1000 | 640*640 |
| Cabinet Material | Die-casting aluminum / Magnalium |
| Cabinet Weight | ≤ 35KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 270/680 | 190/480 | 130/345 | 190/480 | 200/500 | 125/310 | 230/560 | 120/300 |
| IP Grade | IP43 / IP31 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
The products we offer:
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our advantages:
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
