Transparent LED Curtain Display P3.91 Glass Wall Screen For Window
Advertising
Product Features
1. High transparency rate, 80% transparency rate without affecting
day lighting. No need other heat dissipation system.

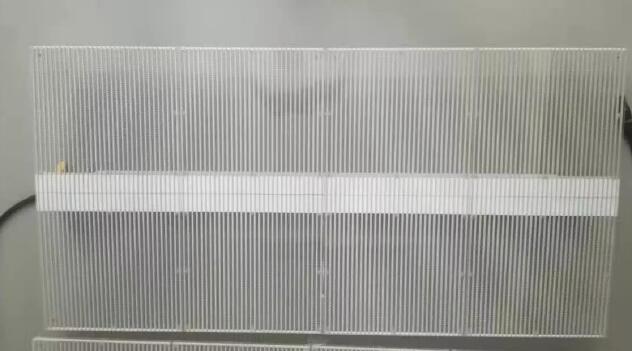

2. PCB board is only 10mm thickness, light weight, and does not
occupy space, without changing the appearance and structure of the
building.
3. Fast lock systems ensure fast installation and saving time and
labor cost.
4. 5000nits brightness ensure the perfect visual performance even
under direct sunlight without cooling system. Saves cost for air
conditioner.
5. Repairing single smd without taking of single module from entire
panel.
6. Simple installation: can be directly installed behind the glass.
FREQUENCY ASKED QUESTIONS
Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: What is DIP?And what is SMD?
A: DIP means double in line package, we call led lamp. SMD means
surface mounted device.
Q: Outdoor screen can't use surface mount LED?
A: We have outdoor SMD display now. We solve the problem of the
brightness and water proof. We use SMD3535 led chip, filling the
glue on the surface with IP65 cabinet.
Q: When is the delivery time?
A: we will accomplish manufacturing within 10-30 days after
receiving deposit. If you need urgent, please kindly let us know,
in guaranteed of quality, we will try our best to produce faster.
Product Parmeters
| Item | Value |
| Model | CDG-391 | CDG-781 | CDG-151 | CDG-101 | CDG-390 | CDG-780 | CDG-710 | CDG-101 | CDG-101 |
| Pixel pitch | 3.91-7.81 | 7.81-7.81 | 7.81-15.62 | 10.4-10.4 | 3.91-7.81 | 7.81-7.81 | 7.81-15.62 | 10.4-10.4 | 15.64-15.64 |
| Pixel Density (dots/㎡) | 32768 | 16384 | 8192 | 9216 | 32768 | 16384 | 8192 | 9216 | 4096 |
| Power Consumption ( W/㎡ Average/Max.) | 120/400 | 260/950 | 250/920 | 220/900 | 220/900 | 200/860 |
| Usage | Indoor | Semi-outdoor |
| Brightness (CD/m2) | > 1000 | > 4000 |
| Pixel Configuration | 1R1G1B |
| LED Encapsulation | SMD 3in1 |
| Cabinet Size(mm) | 500 * 1000 |
| Cabinet material | Aluminum |
| Weight | ≈15KG/SQM |
| Transparence | > 80% |
| Viewing Angle | H: 120° V: 120° |
| Refresh Rate | > 1920HZ |
| Frame Frequency | 50 - 60Hz |
| Working Voltage | 110V / 220V AC±10% |
| MTBF | > 10,000 hrs |
| Lifespan | ≥ 100,000 hrs |
| Working Temperature / Humidity | -20℃ - +45℃ 10-90％ RH |
| Storage Temperature / Humidity | -25℃～50℃ 10～90%RH |
Why choose us
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
