Outdoor Full Color Advertising P4 Led Sign Led Billboard Display
Product Feature
1. New style module mast which can improve 10% brightness than
normal module mask and realize more clearer images with stronger
feeling of layers.
2. Screen can work under very strong sunlight.
3. With sensor card, it can adjust screen brightness automatically
according to the changing light between day and night which can
save energy to reduce your operating cost greatly. In addition, it
can prolong the lifespan of the LED Display.
4. Variety of customized products to satisfy different
requestments.
5. Wide applications: Any building with glass wall. Such as
shopping mall, 4S store, jewelry store, clothing store, watch
store, theatres, hotels, airport, museum, etc.
6. "Application
--- TV shows, live shows, events background display
--- Party, stage lighting
-- -Hotel, disco, bars, night club ceiling and floor decoration
--- Architectures interior lighting decoration"
FREQUENCY ASKED QUESTIONS
Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: What is the payment method?
A: We support a variety of payment methods, such as T/T, western
union, paypal, moneygram.
Q: What's the payment terms?
A: 70% deposit to start production, and 30% balance to be clear
before delivery.
Q: Where the led display is used for?
A: Indoor & outdoor use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20

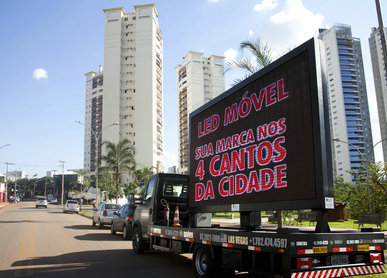

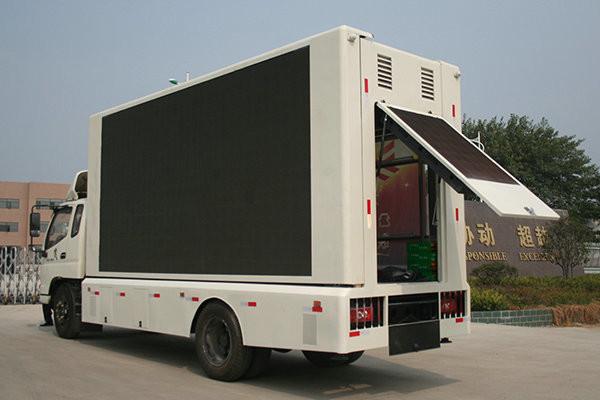

Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our advantages
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
