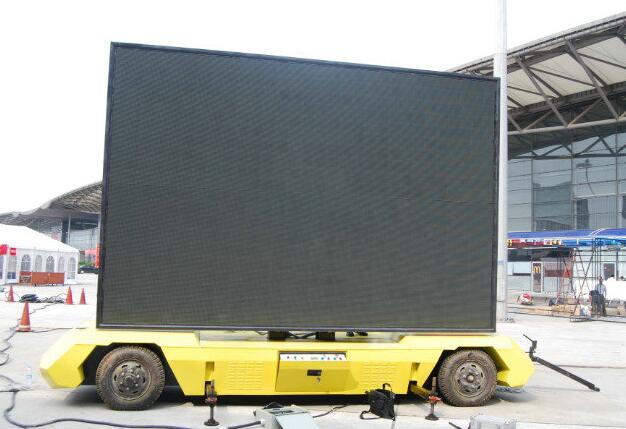

P16mm Full Color Movable Advertising Led Screen Outdoor IP65 Mobile
Led
Product Feature
1. New style module mast which can improve 10% brightness than
normal module mask and realize more clearer images with stronger
feeling of layers.
2. Screen can work under very strong sunlight.
3. With sensor card, it can adjust screen brightness automatically
according to the changing light between day and night which can
save energy to reduce your operating cost greatly. In addition, it
can prolong the lifespan of the LED Display.
4. Horizontal viewing angle 140 degree without black block.
5. The die-casting aluminum panel employs modular design. Modules
and power box can all be maintained conveniently from the front or
rear according to requirements.
6. Panels of two different sizes can be assembled together, and
more surprisingly the super compatible panels also support for
mismatch splicing from all directions.
FREQUENCY ASKED QUESTIONS
Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: What is the delivery guarantee?
A: Guarantee time: 2 years. Within 2 years, if any part failed, we
send new parts or repair for free, You will undertake shipping cost
from your city to China and we undertake shipping cost from China
to your city. After 2 years, we only charge cost price for parts
and repairements, and you need to pay shipping cost go and back.
Q: What's the control system?
A: Control system could be Linsn, Nova-star, Xixun, Color
light...Usually client use Linsn for fixed installation led
screens, and Nova-star system for rental screens.
Q: Why is brightness important?
A: If you want images to be seen during the day, your display must
compete with the Sun. The Sun emits approximately 4,000 nits of
light (a nit is a measurement of light emitted from a device.) In
order for an LED display to display effectively during the day, a
minimum of 5,000 nits is required.
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20

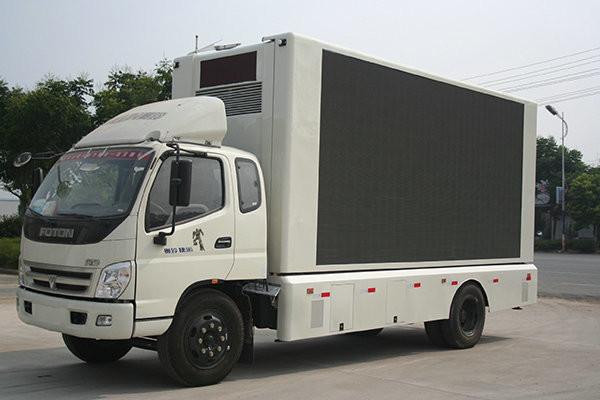

Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our advantages
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
