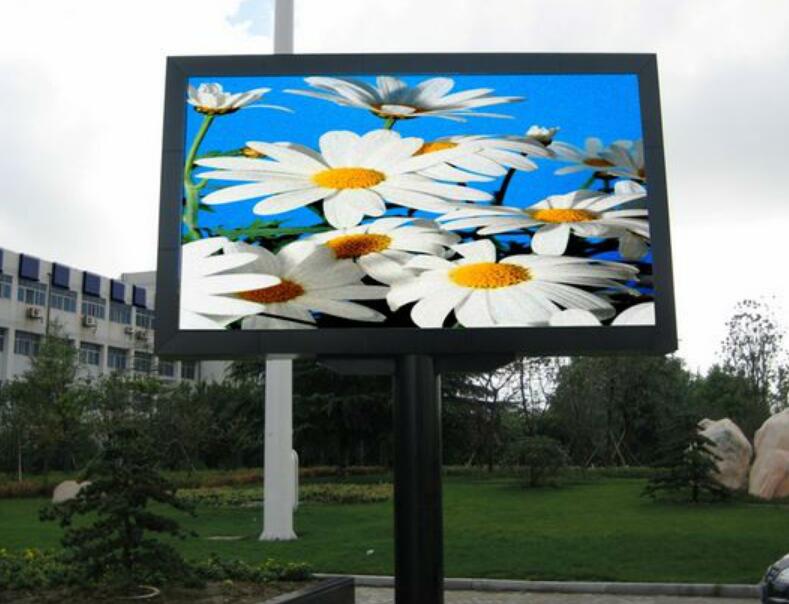

Outdoor P8 Fixed Install Full Color Led Screen Front Service
1024*1024 Display
Product Features
1. Screen can work under very strong sunlight.
2. Led display works in good condition under all kinds of bad
weather; strong durability.
3. Brightness can be adjusted automatically according to different
surroundings.
4. Excellent quality with CE, ROHS, UL, ETL certificate.
5. Free training after order, and offer you the training course in
detail.
6. We use aerial grade brands connectors to ensure the stable
transmission of power and signal.
FREQUENCY ASKED QUESTIONS
Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial
Zone, Shenzhen, China. We can pick you up from airport or your
hotel for visiting.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check
our product’s quality.
Q: Is it OK to print my logo on cabinet?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control
system and the defective rate will be less than 0.2%. Secondly, for
defective batch products, we will repair them and resend them to
you or we can discuss the solution including re-call according to
real situation.
Q: How could I buy the products I need if there is no price in the
website?
A: You can send your inquiry to us about the products you need,our
sales will reply you within 24 hours to help you make the order.
Product Parmeters
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Why choose us
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
