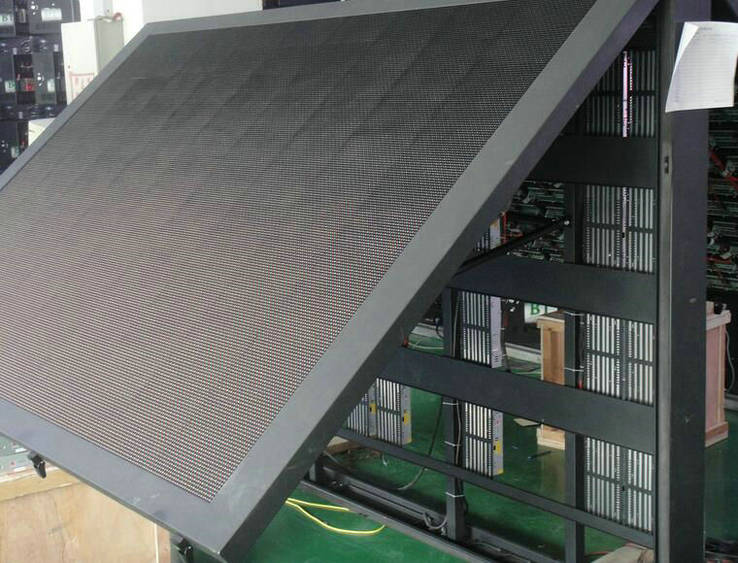

Led Video Wall Outdoor Led Sign Front Open Service Led Cabinet
Product Features
1. Screen can work under very strong sunlight.
2. Led display works in good condition under all kinds of bad
weather; strong durability.
3. Brightness can be adjusted automatically according to different
surroundings.
4. Wide viewing distance, high definition, good uniformity.
5. Grand A row material for module frame and mask.
6. 4 layers PCB and copper plating thickness > 18mil.
FREQUENCY ASKED QUESTIONS
Q: How to get the price list?
A: Sorry that we don't have price list because each project has
difference requirements, and we quote according to your detailed
requirements.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check
our product’s quality.
Q: What is your term of delivery?
A: We accept EXW, FOB Shenzhen or door to door. You can choose the
one which is the most convenient or cost effective for you.
Q: What about the production time for the mass production?
A: Honestly, it depends on the order quantity and the season you
place the order. Usually it takes 10 to 30 days for production.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time.
1) It will use for what ?
2) Where will you install it ?
3) Full color or single color?
4) It's rental installation or fixed installation ?
For designing or further discussion, it is better to contact us
with Skype, in case of any delays.
Product Parmeters
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Why choose us
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
