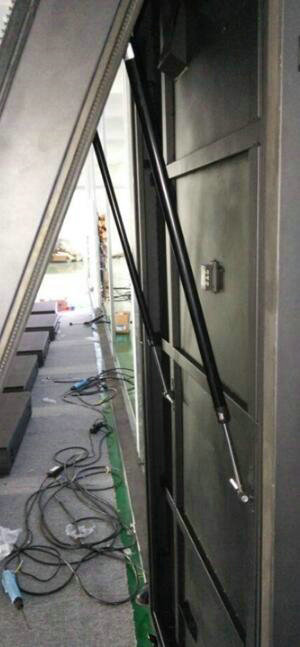

Fixed Installation Advertising Billboard Front Serviced Led Display
P8 P10 P6
Product Features
1. Screen can work under very strong sunlight.
2. Led display works in good condition under all kinds of bad
weather; strong durability.
3. Brightness can be adjusted automatically according to different
surroundings.
4. Well-known brand led is used, with wide viewing angle, little
attenuation, good heat dissipation, and vivid colors.
5. Automatically detection for power & signal working status.Any
problem could be feedback at once for timely maintenance.
6. The cover was made of high- strength PC engineering-plastics,
high capability of wearing-resistance, scratch resistance.
FREQUENCY ASKED QUESTIONS
Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial
Zone, Shenzhen, China. We can pick you up from airport or your
hotel for visiting.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check
our product’s quality.
Q: What is Drive Method, driving IC and Power supply?
A: Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16
scan, the latter one contributes to less brightness than the
former. We always use the static outdoor, and use the different
kinds of scan indoor.Driving IC is the generic term for several
kinds of IC, that are used to control the LED lamps, and as a
bridge between the control system and lamps.Power supply: a kind of
device that used as a transfer from 220V AC into 5V DC. It always
seems like a box in the cabinet.
Q: What is viewing angle?
A: Viewing angle is the maximum angle at which a display can be
viewed with acceptable visual performance. It includes horizontal
viewing angle and vertical viewing angle.
Q: How can you ensure the led display product quality?
A: Before shipment, all the screens have aging test and then we
also have waterproof test and shake test, ensure products can
transportation safety and normal use.
Product Parmeters
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Why choose us
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
