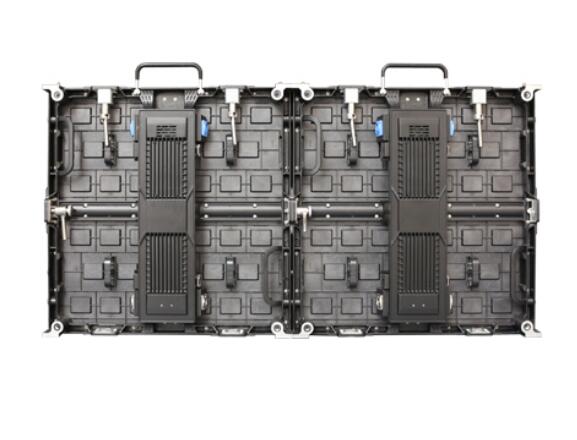

Full Color Indoor Rental Led Display Board P3.91 Mobile Rental
Screen
Product features:
1. High definition effect comes with uniform luminance and soft
color is suitable for indoor close range viewing.
2. The led display can be assembled into concave and convex screens.
3. Fine pixel pitch rental solution is available.
4. Modular design, any cabinet could removed and replace when it is
not working well.
5. The main structure is made of aluminum alloy material, the
product more light and strong, and excellent heat conduction
characteristics.
6. Special heat-disspating channel design to ensure heat radiate
rapidly and effectively.
RFQ:
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display
industry. We can offer better price than trading Company.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time.
1) It will use for what ?
2) Where will you install it ?
3) Full color or single color?
4) It's rental installation or fixed installation ?
For designing or further discussion, it is better to contact us
with Skype, in case of any delays.
Q: What kind of display we provide?
A: We have indoor/outdoor/led curtain/mobile LED /rental LED
display/LED stage/LED DanceFloor/Irregular LED display for you
choose.
Q: What about the production time for the mass production?
A: Honestly, it depends on the order quantity and the season you
place the order. Usually it takes 10 to 30 days for production.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time.
1) It will use for what ?
2) Where will you install it ?
3) Full color or single color?
4) It's rental installation or fixed installation ?
For designing or further discussion, it is better to contact us
with Skype, in case of any delays.
Q: What kind of display we provide?
A: We have indoor/outdoor/led curtain/mobile LED /rental LED
display/LED stage/LED DanceFloor/Irregular LED display for you
choose.
Product specification:
| INDOOR RENTAL |
| Item | Value |
| Model NO. | CDR-301 | CDR-391 | CDR-401 | CDR-481 | CDR-501 | CDR-601 | CDR-621 | CDR-101 |
| Pixel Pitch | 3 | 3.91 | 4 | 4.81 | 5 | 6 | 6.25 | 10 |
| Pixel Density (dots/sqm) | 111111 | 65536 | 62500 | 43264 | 40000 | 27777 | 25600 | 10000 |
| LED Type | SMD2121 | SMD3528 |
| Viewing Angle | H:120 V:120 |
| Brightness (nits) | 800～1200 |
| Refresh Rate (Hz) | 1920～3000 |
| Module Size(mm) | 192*192 | 250*250 | 256*128 | 250*250 | 320*160 | 192*192 | 250*250 | 320*160 |
| Cabinet Size (mm) | 576*576 | 500*500/500*1000 | 512*512 | 500*500/500*1000 | 640*640 | 576*576 | 500*500/500*1000 | 640*640 |
| Cabinet Material | Die-casting aluminum / Magnalium |
| Cabinet Weight | ≤ 35KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 270/680 | 190/480 | 130/345 | 190/480 | 200/500 | 125/310 | 230/560 | 120/300 |
| IP Grade | IP43 / IP31 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
The products we offer:
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our advantages:
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
