High Definition Full Color P3.91 P4.81 Outdoor Rental LED Screen
Display
Product features:
1. High bright 3in1 LED SMD lamps with best plastic package suite
are not easy to be damaged and ensures the best viewing angle.

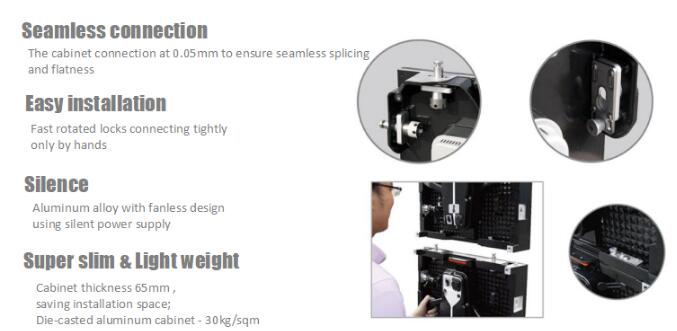

2. Fast installation and front maintenance design is available,
make your LED display business more proffessional and easier.
3. Modular design, any cabinet could removed and replace when it is
not working well.
4. The main structure is made of aluminum alloy material, the
product more light and strong, and excellent heat conduction
characteristics.
5. Special heat-disspating channel design to ensure heat radiate
rapidly and effectively.
6. Horizontal viewing angle 140 degree without black block.
RFQ:
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display
industry. We can offer better price than trading Company.
Q: How to get the price list?
A: Sorry that we don't have price list because each project has
difference requirements, and we quote according to your detailed
requirements.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: What is DIP?And what is SMD?
A: DIP means double in line package, we call led lamp. SMD means
surface mounted device.
Q: Outdoor screen can't use surface mount LED?
A: We have outdoor SMD display now. We solve the problem of the
brightness and water proof. We use SMD3535 led chip, filling the
glue on the surface with IP65 cabinet.
Q: When is the delivery time?
A: we will accomplish manufacturing within 10-30 days after
receiving deposit. If you need urgent, please kindly let us know,
in guaranteed of quality, we will try our best to produce faster.
Product specification:
| OUTDOOR RENTAL |
| Item | Value |
| Model NO. | CDR-390 | CDR-400 | CDR-480 | CDR-500 | CDR-600 | CDR-620 | CDR-660 | CDR-800 | CDR-100 | CDR-100D |
| Pixel Pitch | 3.91 | 4 | 4.81 | 5 | 6 | 6.25 | 6.67 | 8 | 10 | 10 |
| Pixel Density (dots/sqm) | 65536 | 62500 | 43264 | 40000 | 27777 | 25600 | 22500 | 15625 | 10000 | 10000 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 4500～6500 | 7000～8000 |
| Refresh Rate (Hz) | 1920～3000 |
| Module Size(mm) | 250*250 | 256*128 | 250*250 | 320*160 | 192*192 | 250*250 | 320*160 | 320*160 |
| Cabinet Size (mm) | 500*500/500*1000 | 512*512 | 500*500/500*1000 | 640*640 | 576*576 | 500*500/500*1000 | 640*640 | 640*640 |
| Cabinet Material | Die-casting aluminum / Magnalium |
| Cabinet Weight | ≤ 35KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 250/620 | 360/900 | 230/560 | 400/980 | 240/600 | 260/680 | 250/620 | 310/780 | 400/980 | 300/760 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Our Advantage
1.Goods be examined before delivery,Professional QC team
2.Variety of customized products to satisfy different requests.
3.Highest cost-effective price.
4.With pure golden wire connection in LED.
5.The price depends on the quantity. We can provide you with the
best competitive price in the market with the same or even better
quality.
6.All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
7.Top Quality & Reasonable Price & Responsible After Service
8.All private information will be well protected.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
