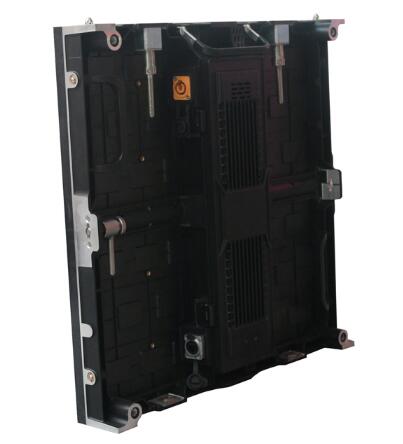

P4.81 Outdoor Full Color LED Video Wall/Screen/Panel For Rental Led
Display
Product features:
1. High refresh rate and high gray scale to make the picture vivid
which meets the demand of high visual quality of commercial usage.
2. Fast installation and front maintenance design is available,
make your LED display business more proffessional and easier.
3. Modular design, any cabinet could removed and replace when it is
not working well.
4. Support all types of video, graphics, animation, message, etc,
support PC online or offline control, also can remote control with
asynchronous system, or Wifi control, 3G control.
5. IP68 waterproof, meeting the demands of outdoor applications.
6. Input Voltage:AC100-220V.
RFQ:
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display
industry. We can offer better price than trading Company.
Q: How to get the price list?
A: Sorry that we don't have price list because each project has
difference requirements, and we quote according to your detailed
requirements.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: What are Pixel Pitch, Pixel Density, LED QTY, and Pixel
Configuration?
A: Pixel Pitch is the distance between neighboring pixels.Pixel
Density is the quantity of pixels per square meter. LED QTY is the
quantity of LED lamps per square. Pixel Configuration is the
description of the consistence of a pixel, for instance, we use 1
red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the
pixel configuration is 1R1G1B.
Q: What are LED Type, Module size and Module resolution?
A: LED Type is the description of LED lamp, for instance, the
brand, the shape in physical, the size of the lamp, etc. Module
size is the measurement of a module. Module resolution is the
number of pixels per module.
Q: What is Drive Method, driving IC and Power supply?
A: Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16
scan, the latter one contributes to less brightness than the
former. We always use the static outdoor, and use the different
kinds of scan indoor.Driving IC is the generic term for several
kinds of IC, that are used to control the LED lamps, and as a
bridge between the control system and lamps.Power supply: a kind of
device that used as a transfer from 220V AC into 5V DC. It always
seems like a box in the cabinet.
Product specification:
| OUTDOOR RENTAL |
| Item | Value |
| Model NO. | CDR-390 | CDR-400 | CDR-480 | CDR-500 | CDR-600 | CDR-620 | CDR-660 | CDR-800 | CDR-100 | CDR-100D |
| Pixel Pitch | 3.91 | 4 | 4.81 | 5 | 6 | 6.25 | 6.67 | 8 | 10 | 10 |
| Pixel Density (dots/sqm) | 65536 | 62500 | 43264 | 40000 | 27777 | 25600 | 22500 | 15625 | 10000 | 10000 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 4500～6500 | 7000～8000 |
| Refresh Rate (Hz) | 1920～3000 |
| Module Size(mm) | 250*250 | 256*128 | 250*250 | 320*160 | 192*192 | 250*250 | 320*160 | 320*160 |
| Cabinet Size (mm) | 500*500/500*1000 | 512*512 | 500*500/500*1000 | 640*640 | 576*576 | 500*500/500*1000 | 640*640 | 640*640 |
| Cabinet Material | Die-casting aluminum / Magnalium |
| Cabinet Weight | ≤ 35KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 250/620 | 360/900 | 230/560 | 400/980 | 240/600 | 260/680 | 250/620 | 310/780 | 400/980 | 300/760 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Why choose us?
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer:
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
