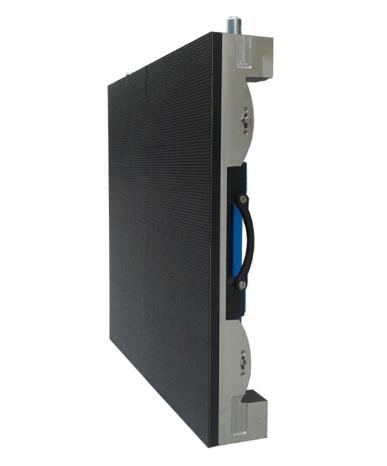

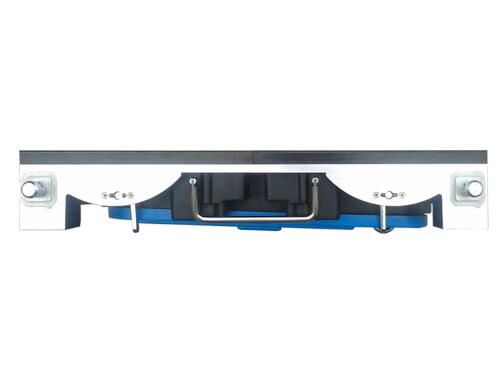

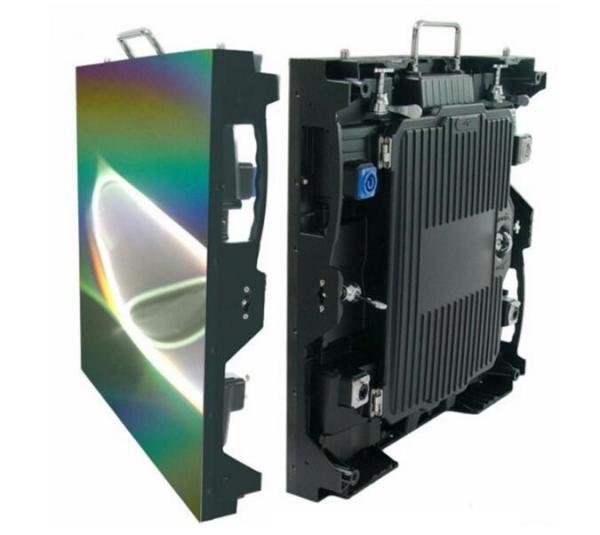

Outdoor Rental Led Display Screen Waterproof Diecasting Aluminium
Cabinet
Product Features:
1. High bright 3in1 LED SMD lamps with best plastic package suite
are not easy to be damaged and ensures the best viewing angle.
2. Power & signal connector could reach to IP65. Easy assembling
and removing safety.
3. High refresh rate and high gray scale to make the picture vivid
which meets the demand of high visual quality of commercial
usage.4. Special walldrape design, no need buy more structure for
installation.
4. Automatically detection for power & signal working status.Any
problem could be feedback at once for timely maintenance.
5. The cover was made of high- strength PC engineering-plastics,
high capability of wearing-resistance, scratch resistance.
6. Wide viewing distance, high definition, good uniformity.
RFQ
Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: Can I use my own forwarder to transport the products for me?
A: Yes, if you have your own forwarder, you can let your forwarder
ship the products for you. But it is suggested that use our
forwarder because we have long-term good relationship with them for
good price and service.
Q: What is the payment method?
A: We support a variety of payment methods, such as T/T, western
union, paypal, moneygram.
Q: What's the payment terms?
A: 70% deposit to start production, and 30% balance to be clear
before delivery.
Q: Where the led display is used for?

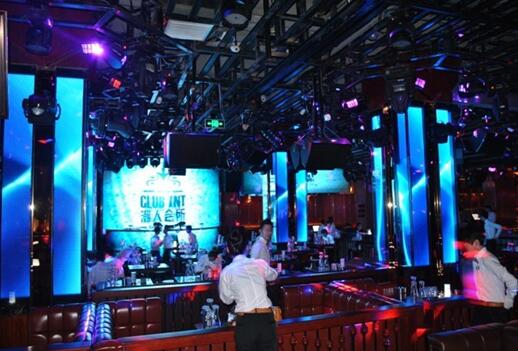

A: Indoor & outdoor use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Product Parmeters:
| OUTDOOR RENTAL |
| Item | Value |
| Model NO. | CDR-390 | CDR-400 | CDR-480 | CDR-500 | CDR-600 | CDR-620 | CDR-660 | CDR-800 | CDR-100 | CDR-100D |
| Pixel Pitch | 3.91 | 4 | 4.81 | 5 | 6 | 6.25 | 6.67 | 8 | 10 | 10 |
| Pixel Density (dots/sqm) | 65536 | 62500 | 43264 | 40000 | 27777 | 25600 | 22500 | 15625 | 10000 | 10000 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 4500～6500 | 7000～8000 |
| Refresh Rate (Hz) | 1920～3000 |
| Module Size(mm) | 250*250 | 256*128 | 250*250 | 320*160 | 192*192 | 250*250 | 320*160 | 320*160 |
| Cabinet Size (mm) | 500*500/500*1000 | 512*512 | 500*500/500*1000 | 640*640 | 576*576 | 500*500/500*1000 | 640*640 | 640*640 |
| Cabinet Material | Die-casting aluminum / Magnalium |
| Cabinet Weight | ≤ 35KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 250/620 | 360/900 | 230/560 | 400/980 | 240/600 | 260/680 | 250/620 | 310/780 | 400/980 | 300/760 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Our advantages:
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
