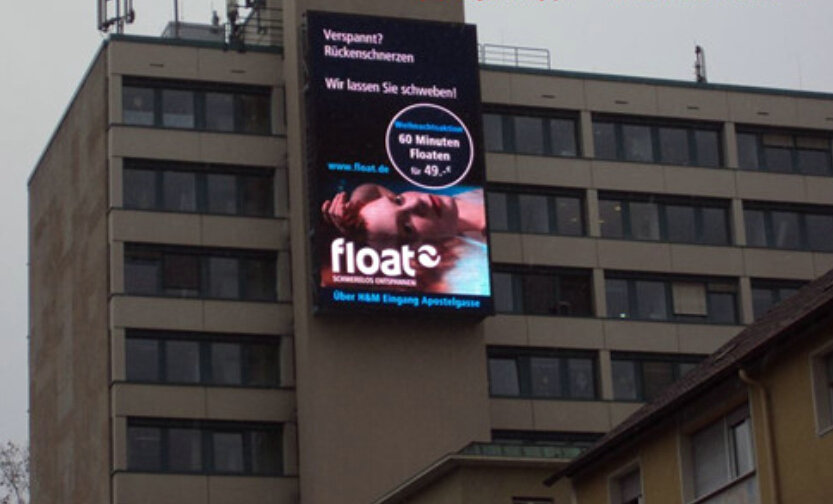

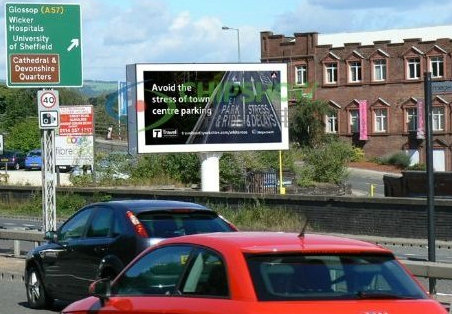

P10 DIP Large Stadium Led Display Tv Screen / Outdoor Led Billboard
Product Feature
1. OEM cabinet size: cabinet size is adjustable and compatible with
different pixels.
2. Screen can work under very strong sunlight.
3. Outdoor standard cabinet applied with strong humidity resistance
ability as well as corrossion resistance.
4. 16348 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chromic can be
adjusted by manual and sensor, whose scope is 256 grade.
5. Line-Double technology is adopted for the picture adjustment.
6. Can be connected with PC and the web net and show the content,
and also can be controlled remotely via WIFI OR 3G.
FREQUENCY ASKED QUESTIONS
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display
industry. We can offer better price than trading Company.
Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial
Zone, Shenzhen, China. We can pick you up from airport or your
hotel for visiting.
Q: How to get the price list?
A: Sorry that we don't have price list because each project has
difference requirements, and we quote according to your detailed
requirements.
Q: What is LED?
A: LED is sanded for Light Emitting Diode, a kind of semiconductor
which is used to give and receive the electronic signal into
infrared rays or light, using the characteristics of compound
semiconductor. This is used for household appliances, remote
controller, electric bulletin board, various kinds of automation
appliances.
Q: What are Pixel Pitch, Pixel Density, LED QTY, and Pixel
Configuration?
A: Pixel Pitch is the distance between neighboring pixels.Pixel
Density is the quantity of pixels per square meter. LED QTY is the
quantity of LED lamps per square. Pixel Configuration is the
description of the consistence of a pixel, for instance, we use 1
red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the
pixel configuration is 1R1G1B.
Q: What are LED Type, Module size and Module resolution?
A: LED Type is the description of LED lamp, for instance, the
brand, the shape in physical, the size of the lamp, etc. Module
size is the measurement of a module. Module resolution is the
number of pixels per module.
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Why choose us?
1. Diversified products: Varieties of models for outdoor/indoor LED
display screens, and customized cabinets available, meet all
requirements and win more profits for customers.
2. Quality assurance: Quality control is taken both in product
design and production. As the quantity of PCB and other components
have been decreased and simplified. Our engineers can concern in a
small quantity of defect to solve and it will be a substantial
boost of the yield rate. 100% testing before packing make sure our
quality before delivery.
3. Best raw materials: High quality, good stability and
reliability.
4. Competitive price: Factory price which is competitive in the
market.
5. Prompt &Professional service: Any inquires will be replied
within 12 hours in working days and you’ll get helpful suggestions
from us.
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
