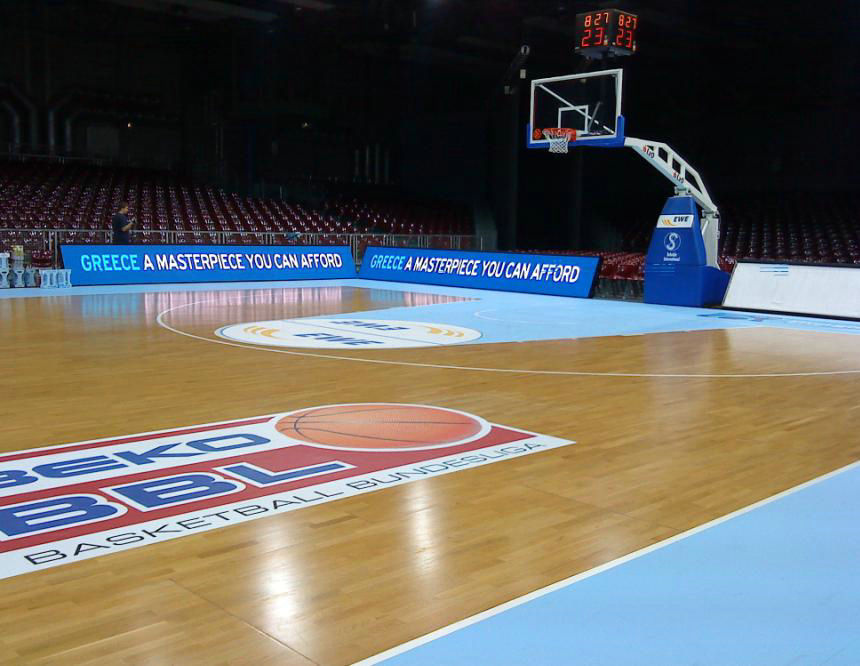

Sport Led Display Stadium LED Perimeter Led Video Wall Advertising
Led Screen
Product Feature
1. OEM cabinet size: cabinet size is adjustable and compatible with
different pixels.
2. Screen can work under very strong sunlight.
3. Outdoor standard cabinet applied with strong humidity resistance
ability as well as corrossion resistance.
4. Free training after order, and offer you the training course in
detail.
5. We use aerial grade brands connectors to ensure the stable
transmission of power and signal.
6. Four or even six layer design PCB is adopted to ensure the
stability.
FREQUENCY ASKED QUESTIONS
Q: Do you have CE/ROHS certificate?
A: Yes, we have the certificate.
Q: What's the shiping method?
A: Our products could be shipped by sea, by air, and by express.
Q: What's the Payment method?
A: T/T for bank transfer, 70% deposit before production, the
balance before delivery. But paypal, west union,etc. also
available.
Q: How could I buy the products I need if there is no price in the
website?
A: You can send your inquiry to us about the products you need,our
sales will reply you within 24 hours to help you make the order.
Q: What is LED?
A: LED is sanded for Light Emitting Diode, a kind of semiconductor
which is used to give and receive the electronic signal into
infrared rays or light, using the characteristics of compound
semiconductor. This is used for household appliances, remote
controller, electric bulletin board, various kinds of automation
appliances.
Q: What are Pixel Pitch, Pixel Density, LED QTY, and Pixel
Configuration?
A: Pixel Pitch is the distance between neighboring pixels.Pixel
Density is the quantity of pixels per square meter. LED QTY is the
quantity of LED lamps per square. Pixel Configuration is the
description of the consistence of a pixel, for instance, we use 1
red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the
pixel configuration is 1R1G1B.
| OUTDOOR FIXED |
| Item | Value |
| Model NO. | CDN-400 | CDN-500 | CDN-600 | CDN-800 | CDN-100 | CDN-100D | CDN-160D |
| Pixel Pitch | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
| Pixel Density (dots/sqm) | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 |
| Viewing Angle | H:120 V:120 | H:120 V:60 |
| Brightness (nits) | 5000～6500 | 7000～8000 |
| Refresh Rate | 360～1920 |
| Module Size(mm) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | 160*160 | 256*256 |
| Cabinet Size Recommended (mm) | 768*768 | 960*960 | 1024*1024 | 960*960 | 1024*1024 |
| Cabinet Material | Steel with powder painted |
| Cabinet Weight | ≈ 45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 360/900 | 400/980 | 240/600 | 280/700 | 400/980 | 300/760 | 180/550 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
The products we offer
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our advantages
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
