Hd Video Small Pixel Pitch Led Screen Indoor P2.5 Led Display
Product features:
1. High definition effect comes with uniform luminance and soft
color is suitable for indoor close range viewing.
2. High refresh rate and high gray scale to make the picture vivid
which meets the demand of high visual quality of commercial usage.

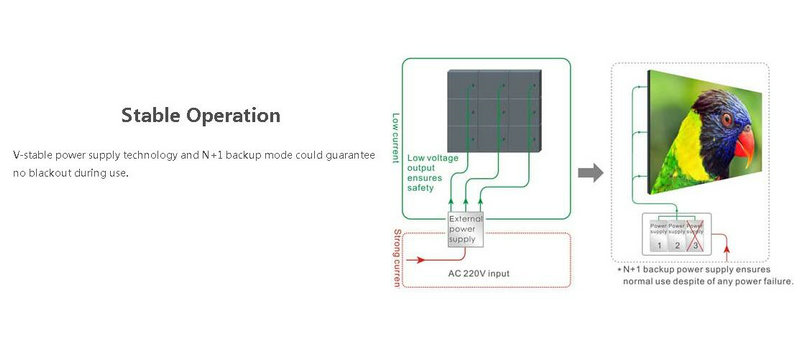

3. Constant current chip driving reduces the power consumption and
prompts the stability, simple modular design is low cost and easy
to maintain.
4. Both synchronous and asynchronous control system are available

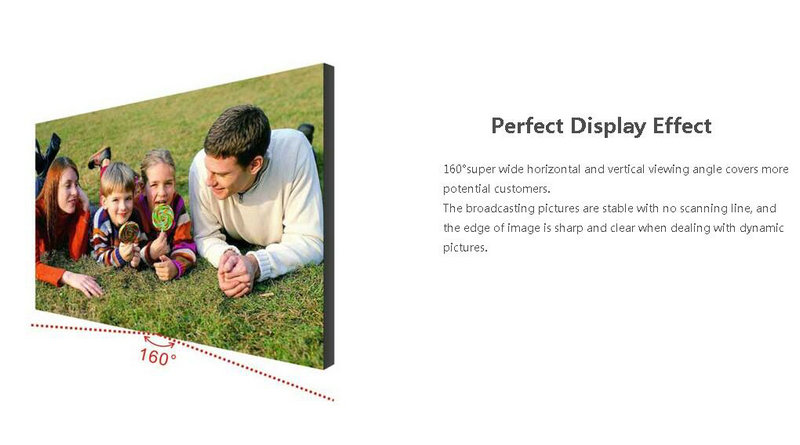

5. Super flatness & uniformity, large viewing angle, high
brightness.
6. Long visual distance, screen can be viewed in a far away space.
RFQ:
Q:Are you a factory or trading company?
A:We are a factory with 10+ years experience in led display
industry. We can offer better price than trading Company.
Q: Where is your factory located? How can I visit there?
A: Our factory address is: B block, NO.56 Heng dong ling Industrial
Zone, Shenzhen, China. We can pick you up from airport or your
hotel for visiting.
Q: How to get the price list?
A: Sorry that we don't have price list because each project has
difference requirements, and we quote according to your detailed
requirements.
Q: Except this model, are there any other models?
A: Yes, For indoor led screen we have
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10.
For outdoor led screen we have P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20.
Q: What's the function of your led screen?
A: It supports videos, flash, WAV/MIDI, PPT, images and so on.
Q: What about the production time for order ?
A: Usually it takes 10-30 days for manufacturing. It depends on the
order quantity and the season you place the order.
Product specification:
| INDOOR SMALL PIXEL PITCH |
| Item | Value |
| Model No. | CDN-151 | CDN-161 | CDN-181 | CDN-191 | CDN-201 | CDN-251 | CDN-301 |
| Pixel Pitch(mm) | 1.5625 | 1.667 | 1.875 | 1.923 | 2 | 2.5 | 3 |
| Pixel Density(dots/sqm) | 409600 | 359856 | 284444 | 270422 | 250000 | 160000 | 111111 |
| LED Type | SMD1010 | SMD2121 |
| Viewing Angle(Deg.) | H:120 V:120 |
| Brightness(nits) | 800~1000 | 800~1200 |
| Refresh Rate(Hz) | 360~1920 |
| Module Size(mm) | 200*100 | 120*120 | 200*100 | 128*128 | 160*160 | 192*192 |
| Cabinet Size Recommended (mm) | 400*300 | 480*480 | 400*300 | 512*512 | 480*480 | 576*576 |
| Cabinet Material | Die-casting aluminum / Magnalium | Steel with powder painted |
| Cabinet Weight | ≤35KG/SQM | ≈45KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 500/1250 | 600/1500 | 500/1250 | 320/800 | 310/780 | 270/680 |
| IP Grade | IP43 / IP31 |
| Operating Temp/Humidity (℃/%RH) | -20℃～45℃10～90%RH |
| Storage Temp/Humidity (℃/%RH) | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Normal Temp) |
The products we offer:
Indoor fixed and rental:
P1.667,P1.923,P2,P2.5,P3,P4,P5,P6,P3.91,P,4.81 P6.25,P7.62,P10
Outdoor fixed and rental: P3,P4,P5,P6,P3.91,P,4.81
P6.25,P8,P10,P12,P16,P20
Mobile truck led display, transparent glass window led
display.creative led display (ball led display, dj led display) and
other customerized led display products
Our advantages:
1. Goods is examined before delivery, professional QC team.
2. Variety of customized products to satisfy different
requestments.
3. Highest cost-effective price in the market.
4. All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
5. Top quality & reasonable price & responsible after service.
6. All private information will be well protected.
7. All products undergo a strict aging test. The 72 hours aging
test is conducted without die lamp, dim lamp, color difference and
mosaic. The product is deliveryed only if it passes the aging test
to ensure the best quality.
8. We specialize in high quality products.
9. We have professional R&D team who has professional
development ability.
10. We are factory, we can offer better price than trading Company.
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any
clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
